LB-M 2
-
Sitka Spruce Top (28’ radius)

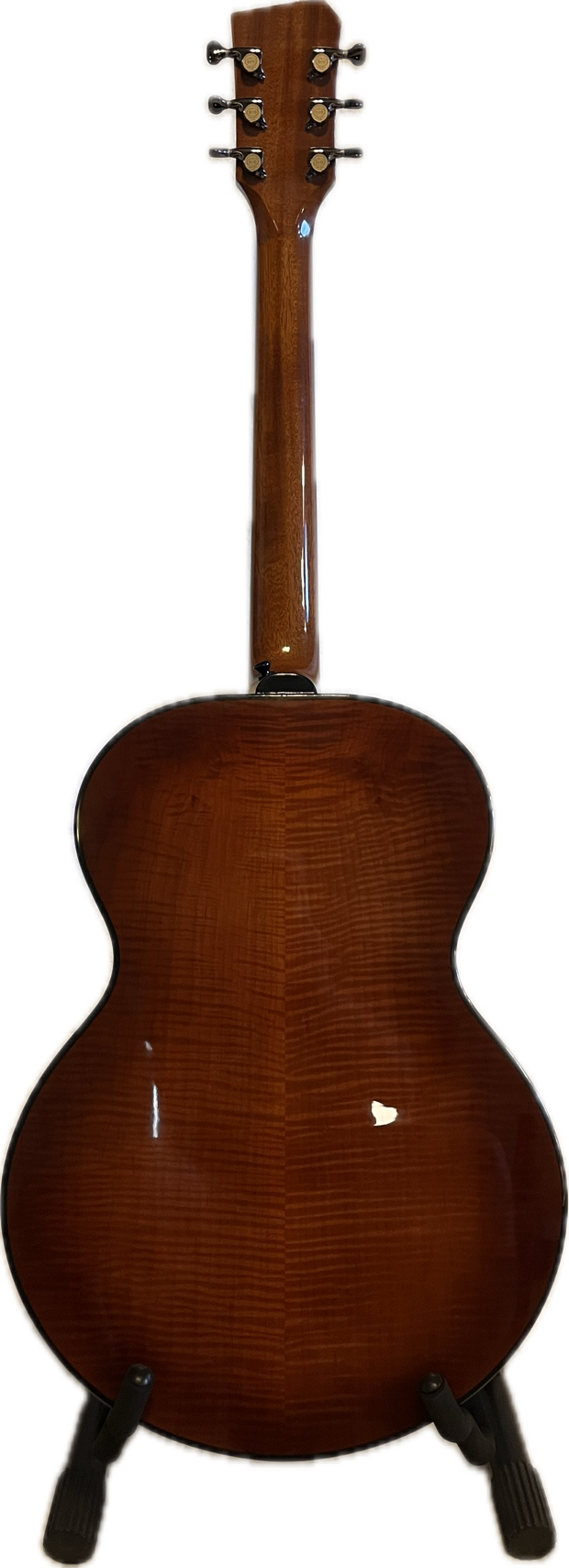

Quilted Maple Back (15’ radius)

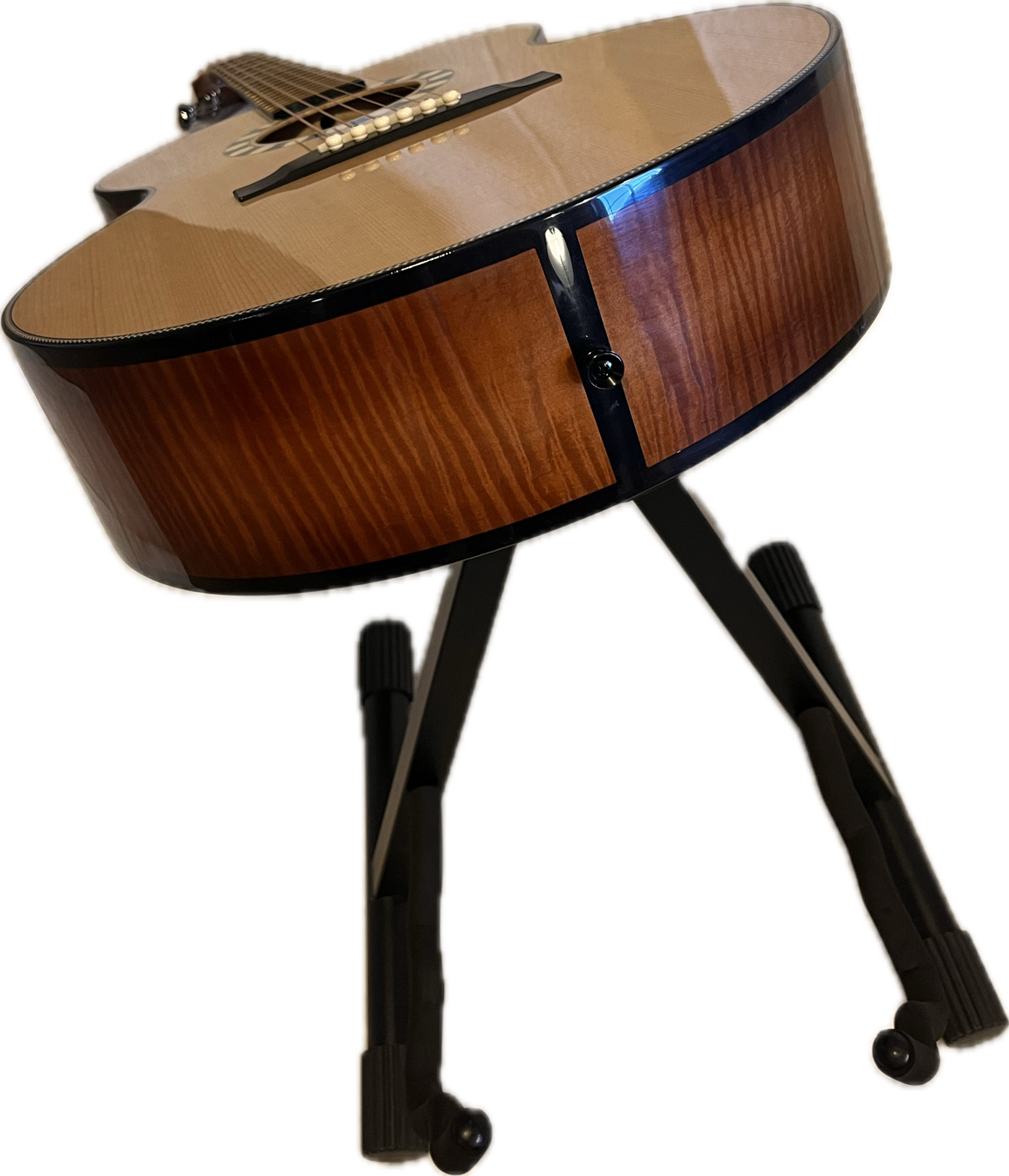

Quilted Maple Sides
Rosette: Black fiber and Holly with BW fiber trim
Sitka Spruce Bracing (sX soundboard brace pattern)
Rosewood bridge plate
Mahogany solid kerfing
Mahogany neck block
Dovetail neck joint
Mahogany tail block with Baltic Birch ply spline
Black ABS binding
Herringbone purfling (top)
Black fiber purfling (back)
-
Old-growth Brazilian Mahogany (1 piece)
2-way truss rod (body access)

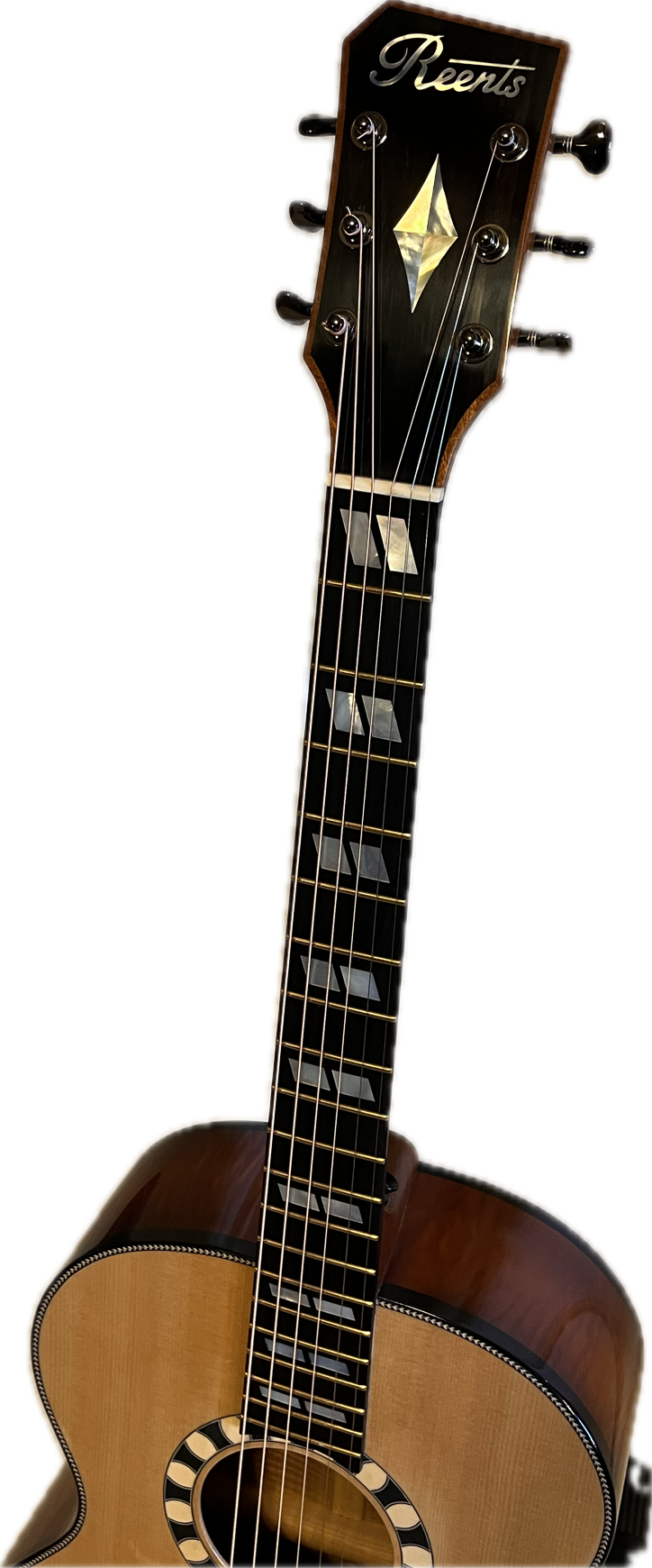

West African Ebony Fingerboard
Frets (medium) EVO gold
MOP double parallelogram fret markers (white)
MOP side fret markers (white)

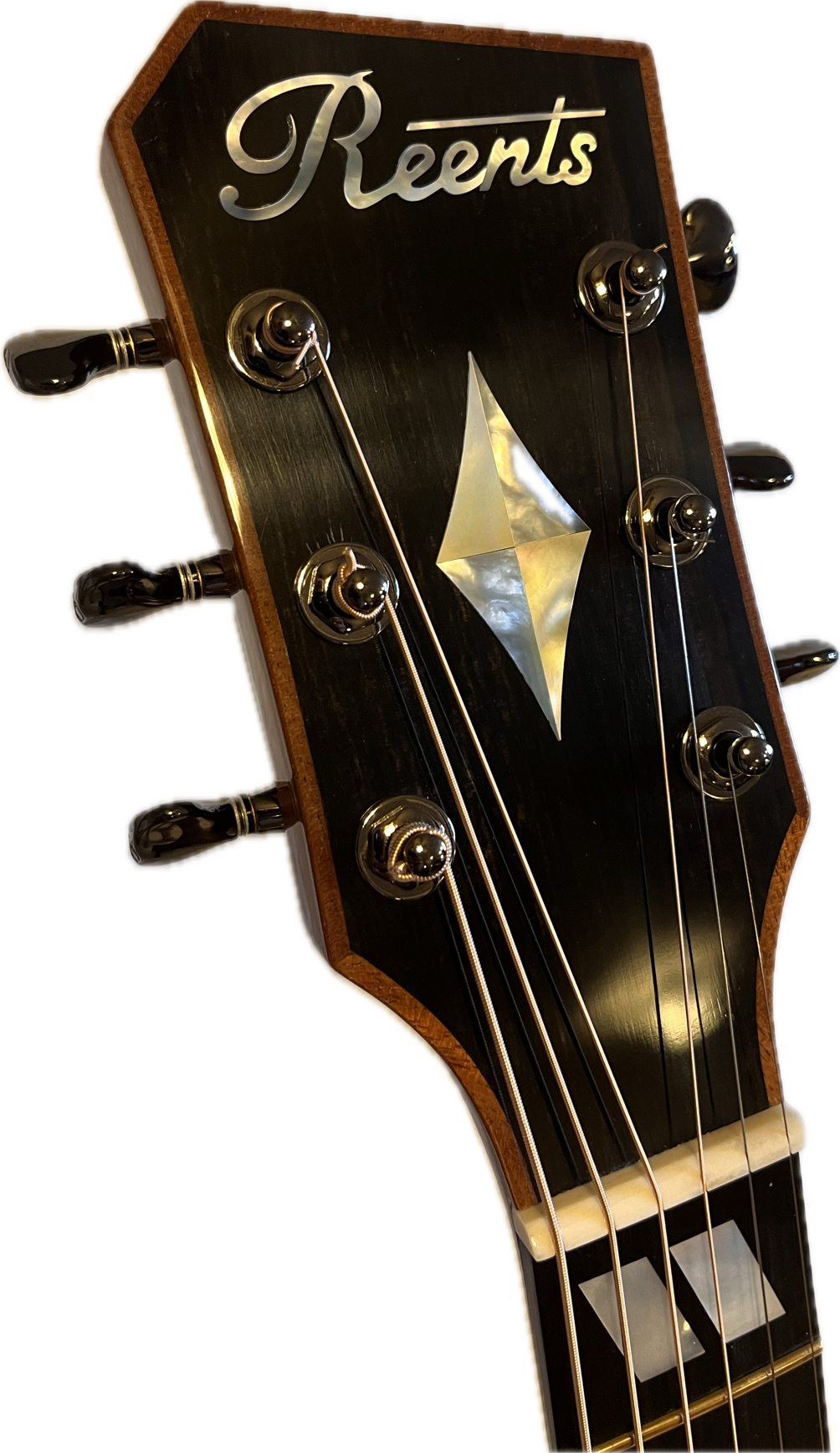

West African Ebony head plate
MOP head plate logo inlay (white and gold)
Mahogany head plate binding
-
Tuners: Gotoh 510 mini 18:1 (Cosmo Black)
Nut: bleached bone
Bridge: West African Ebony
Saddle: bleached bone
Strap buttons: Waverly black
Bridge pins: Waverly white with shell inlay
-
Neck Width (at nut) 1 and 11/16+”
Scale Length: 25.3”
Fingerboard Radius: 12” at 1 st fret, 16” at 12 th fret
Lower Bout Width: 14-7/8”
Lower Bout Depth (max): 4-3/8”
-
Strings: Lite gauge
Lite Tobacco Brown Burst (back and sides)
Nitrocellulose Lacquer
